SPECIFICATIONS

Application: Desktop,Laptop,Number,Tablet

Axis Body Brand: EPOMAKER

Backlight Type: MULTICOLOR

Battery Included: Yes

Brand Name: EPOMAKER

EPOMAKER Model: G84 HE

Full-Size Keyboard: No

High-Concern Chemical: None

Interface Type: USB

Keyboard Standard: 84 Keys

Keycap Material: PBT Plastic

Keycap Printing: Double-Shot

Language: English

Operation Style: Mechanical

Origin: Mainland China

Package: Yes

Style: Standard

Hot-Swappable Switches: Yes

Type: 2.4 GHz Wireless

Wrist Support: No

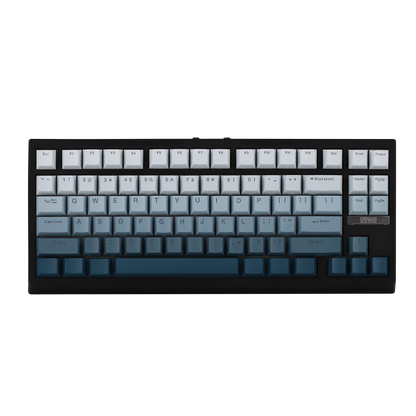

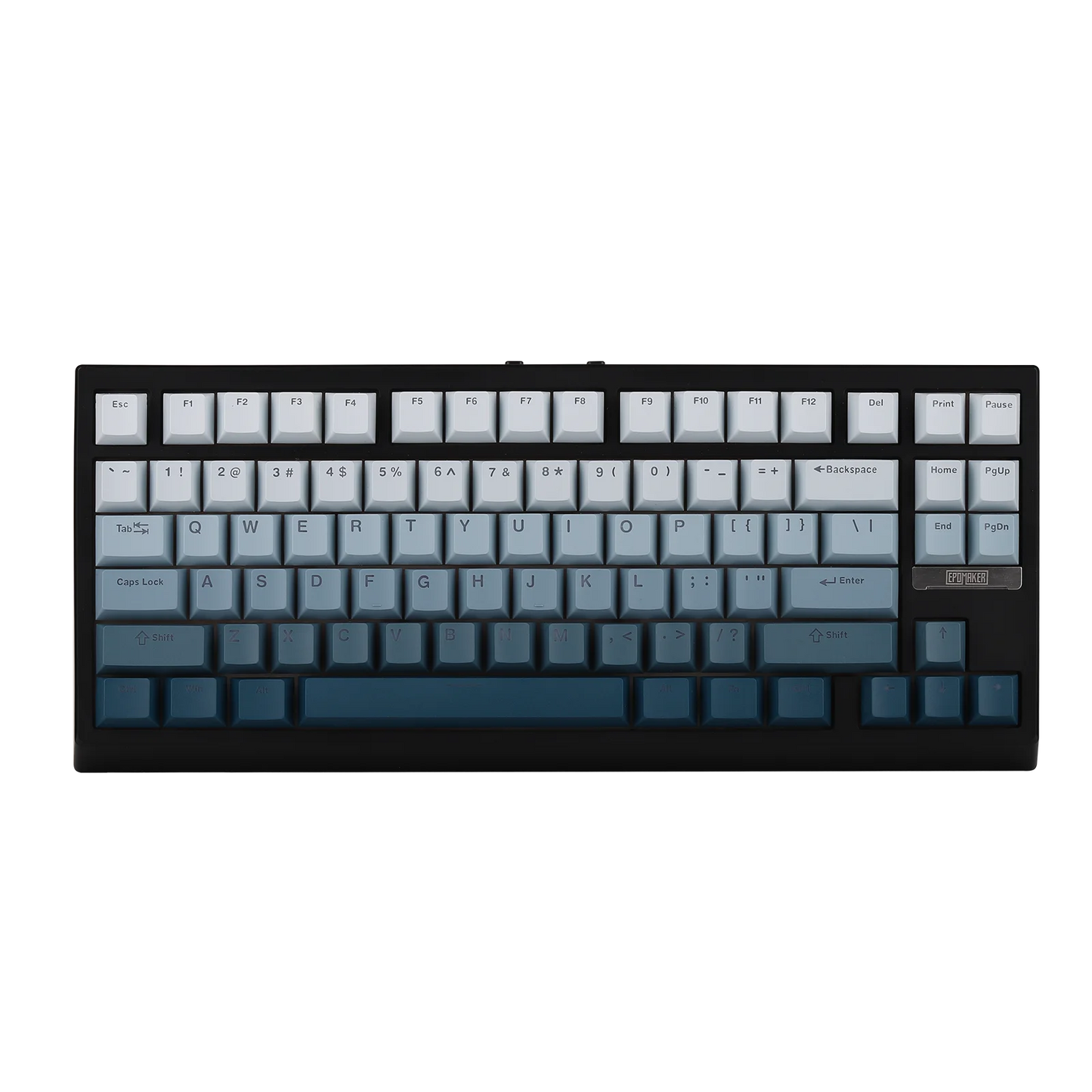

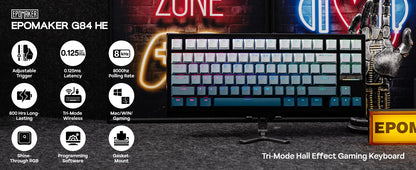

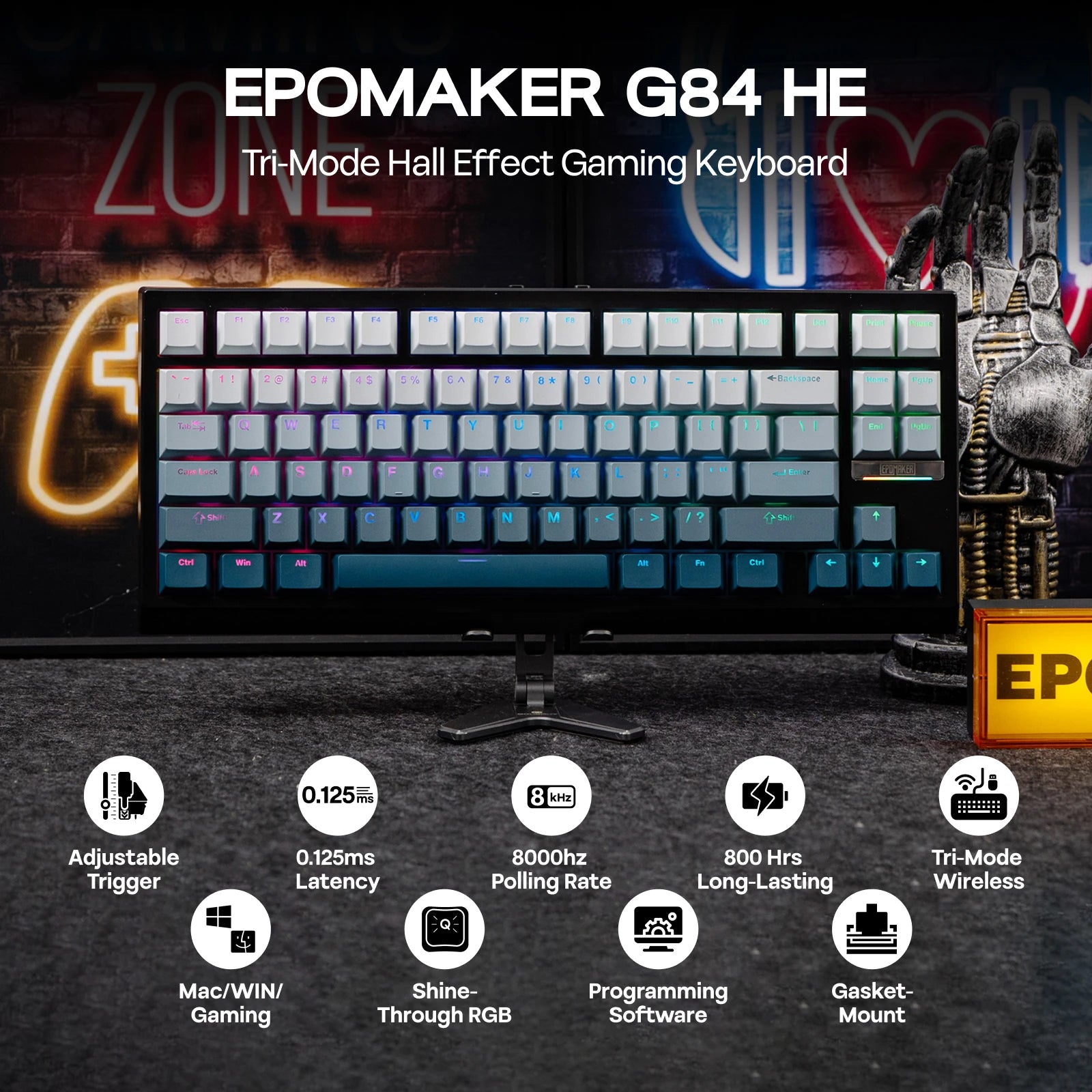

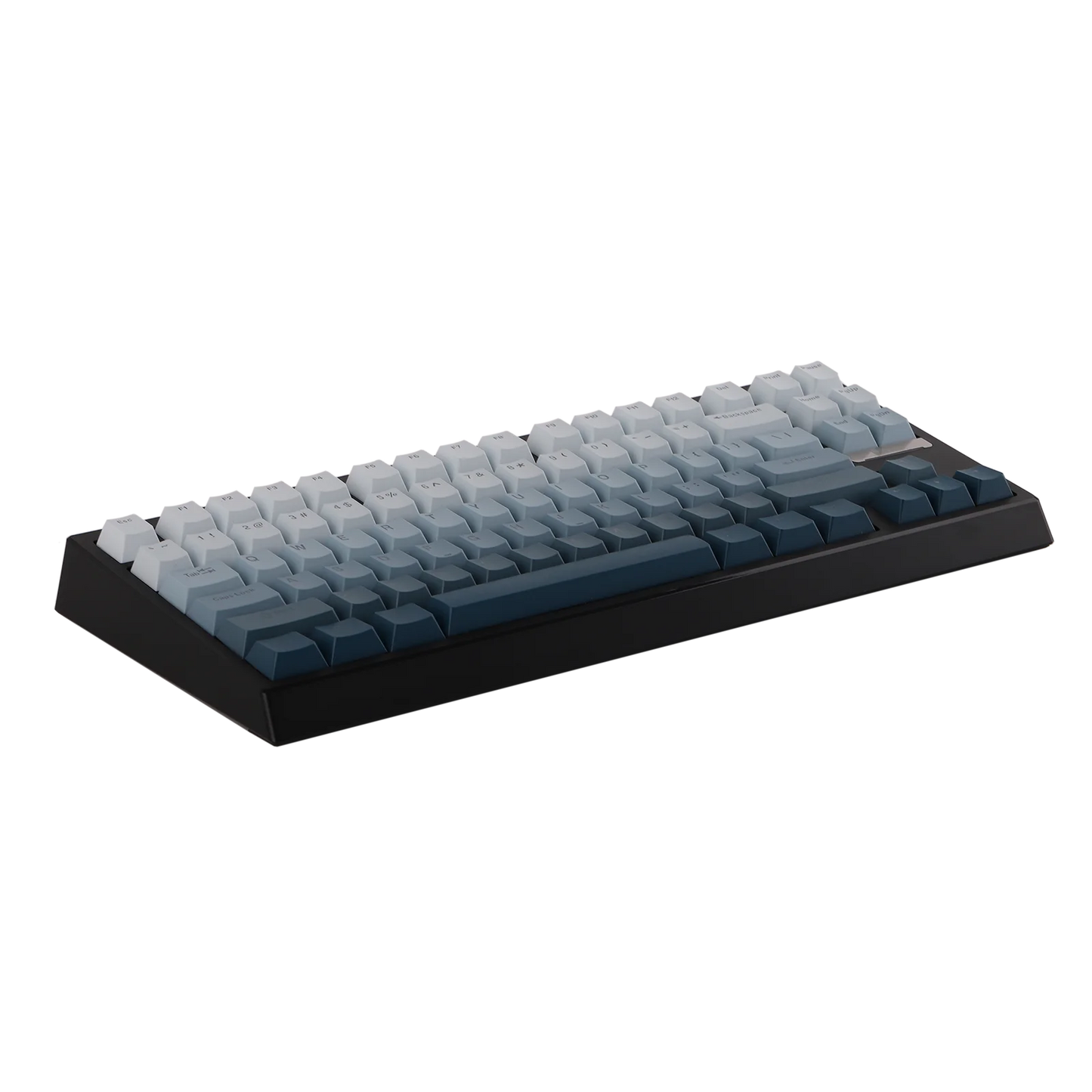

EPOMAKER G84 HE 75% ANSI US Layout Gasket Wired/BT/2.4 GHz Wireless Hall Effect Magnetic Mechanical Keyboard 8K Polling & 8000 mAh

The Epomaker G84 HE delivers precision for gamers, visual enthusiasts, professionals & magnetic keyboard lovers with 0.01 mm RT, DKS/SOCD & tri-mode connectivity, featuring shine-through keycaps and Win/Mac compatibility.

The G84 HE combines gradient luminous keycaps, ultra-precise magnetic switches, and tri-mode connectivity for gamers and style-focused enthusiasts.

-75% Compact Layout for Performance & Space
-Custom Epomaker Duskrise Magnetic Switches

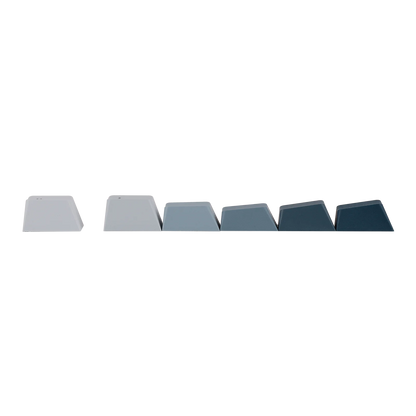

-Gradient Green Shine-Through PBT Keycaps

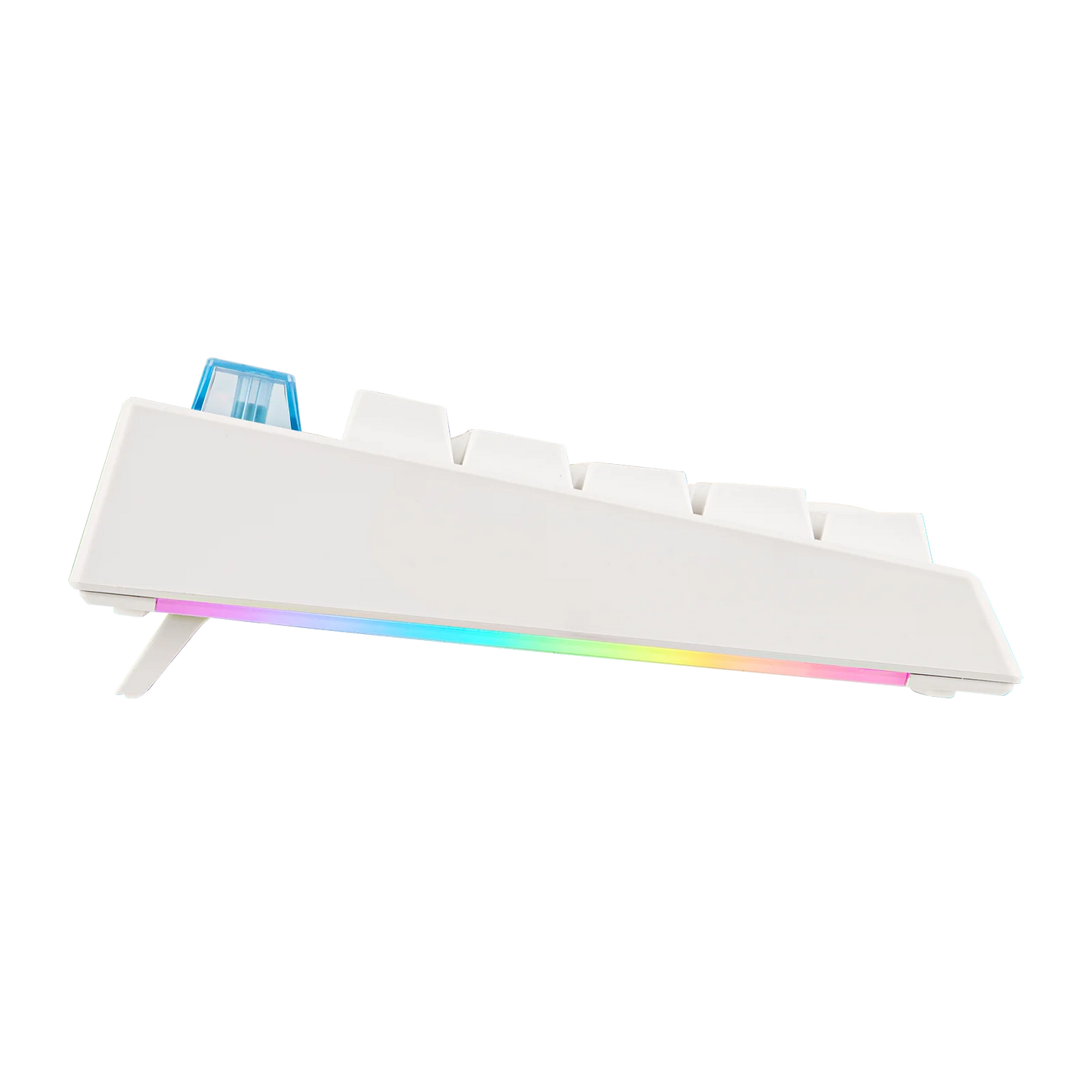

-Dynamic RGB Effects with Underglow Lightbars
-0.01 mm Precision with DKS & SOCD Support

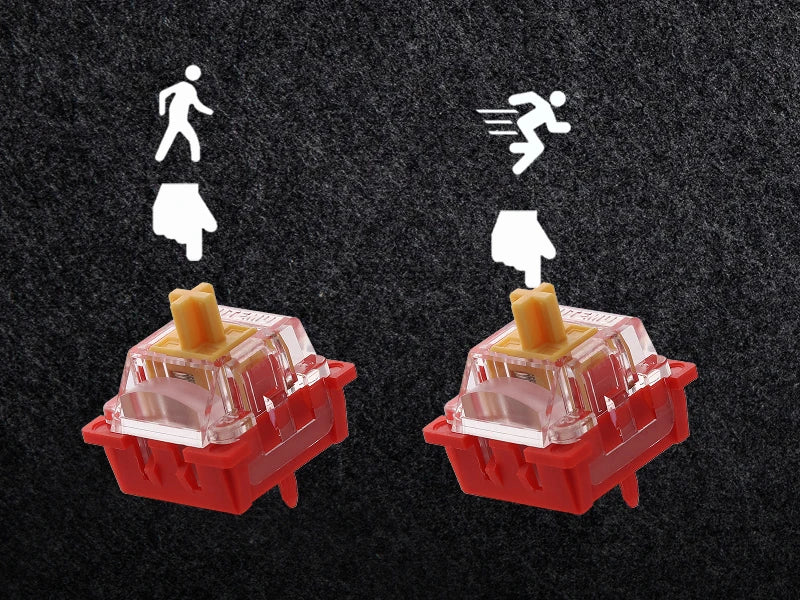

Fast Trigger & Zero Dead Zone

Achieve unmatched fluidity and precision with the G84 HE Hall Effect Keyboard. Every keystroke is delivered instantly, with actuation sensitivity down to 0.01 mm, while trigger and release travel can be adjusted from 0.1 to 3.3 mm with zero dead zone.

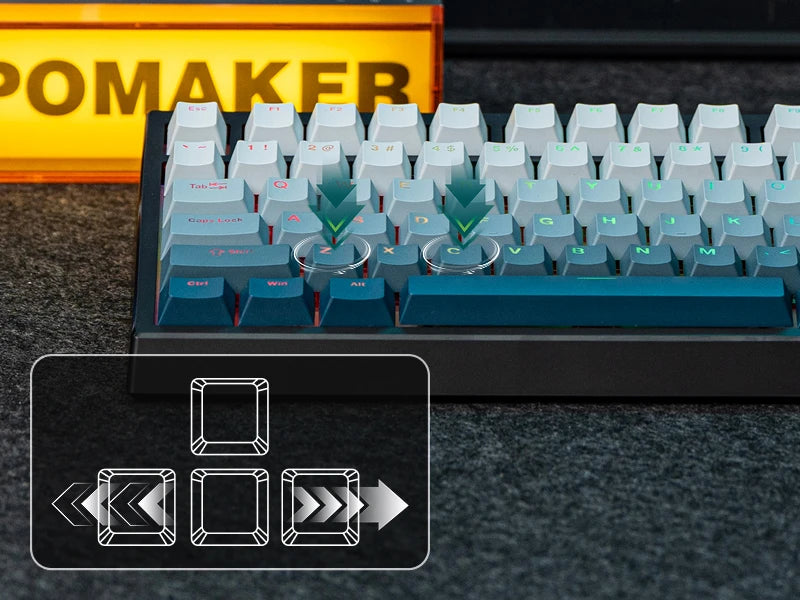

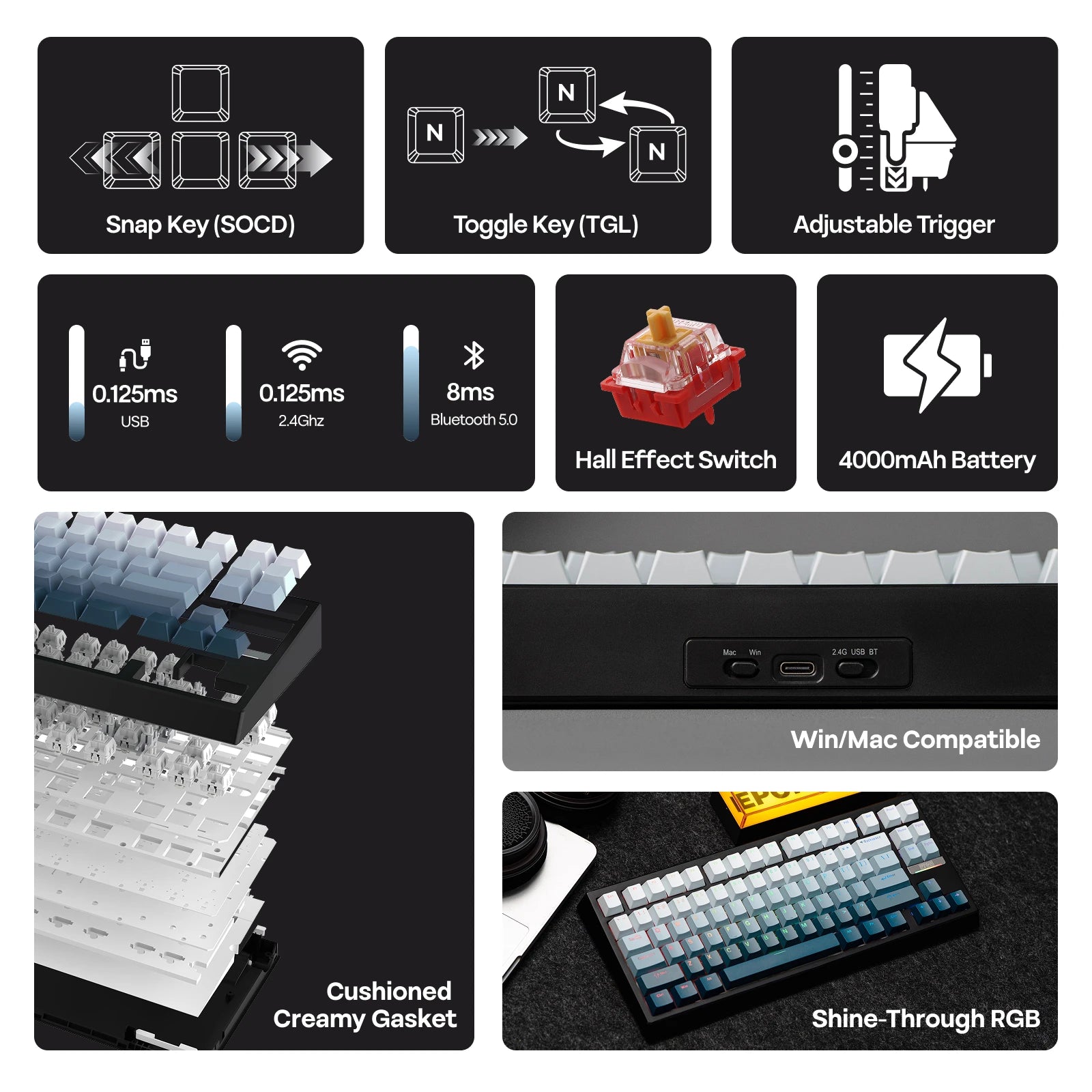

Snap Key (SOCD) & DKS

Tired of neutral blocks or accidental stops in games with conflicting inputs? The SOCD logic of our G84 HE gaming keyboard intelligently prioritizes the last input, enabling ultra-precise movement such as instant air dashes or counter-strafes. DKS (Dynamic Key Rollover) gives you uncompromised control, allowing a single keypress to execute up to 4 commands depending on how far you press it.

8K Hz Polling & 256K Scan Rate

Equipped with lubricated magnetic switches and an esports-grade circuit design, the G84 HE gaming keyboard delivers an 8000 Hz polling rate and a 256K scan rate, giving you the edge you need for fast-paced gameplay. By eliminating physical contact in the trigger mechanism of Hall Effect switches, the G84 HE reduces latency to just 0.125 ms, significantly enhancing speed and control precision.

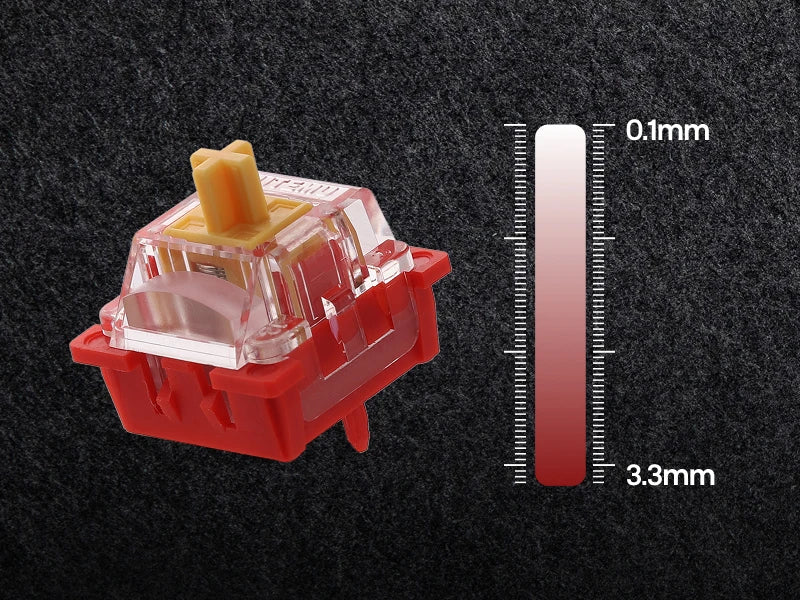

0.1 to 3.3 mm Adjustable Actuation

Whether you play competitively in FPS, MOBA, and rhythm games, or want to improve your typing speed, the programmable actuation and end travel of the G84 HE magnetic keyboard give you the control you need. With EPOMAKER software, compatible with Windows and Mac systems, input trigger and release can be adjusted with precision down to 0.01 mm of finger movement.

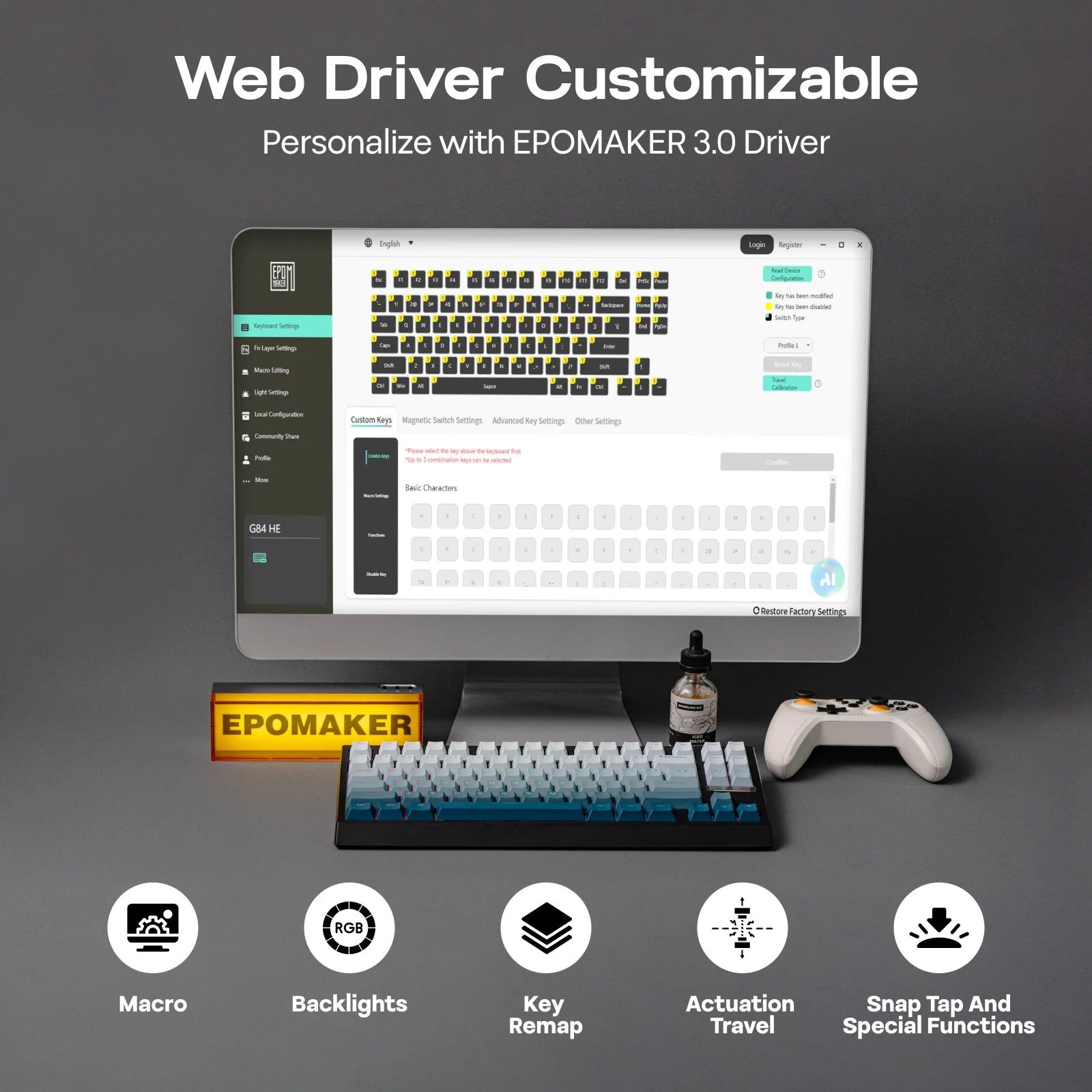

Custom driver (Mac/WIN)

Customize key functions, actuation travel, macros, or backlighting across devices and operating systems with the EPOMAKER software. Record macros to automate repetitive actions, or explore advanced functions such as SOCD, DKS, MT, and RT. Design personalized backlighting effects, tailor keyboard sensitivity, or remap the key layout, all with real-time visual feedback.

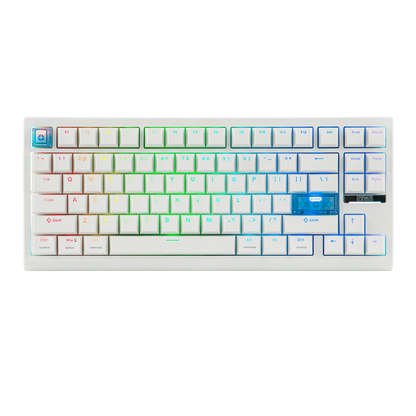

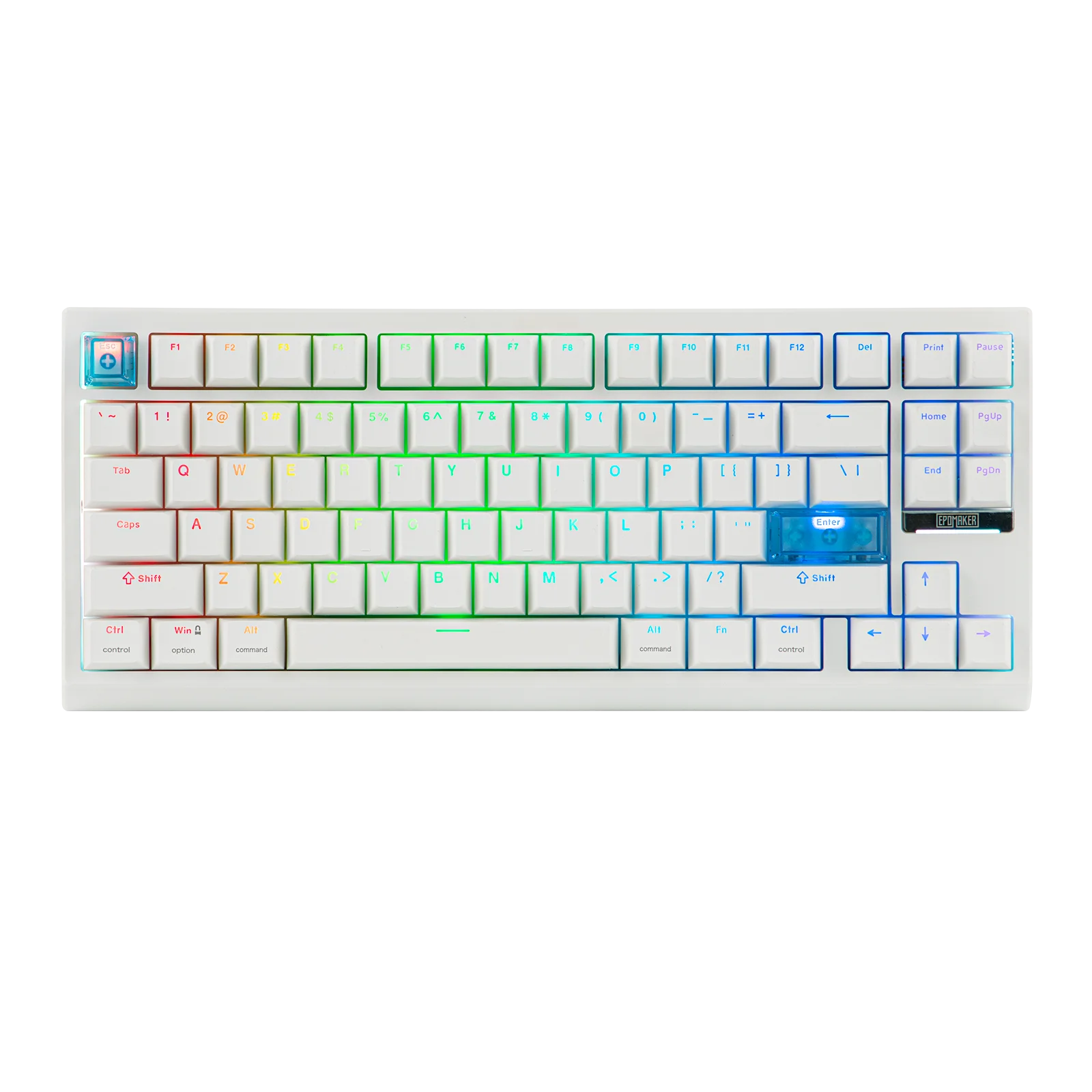

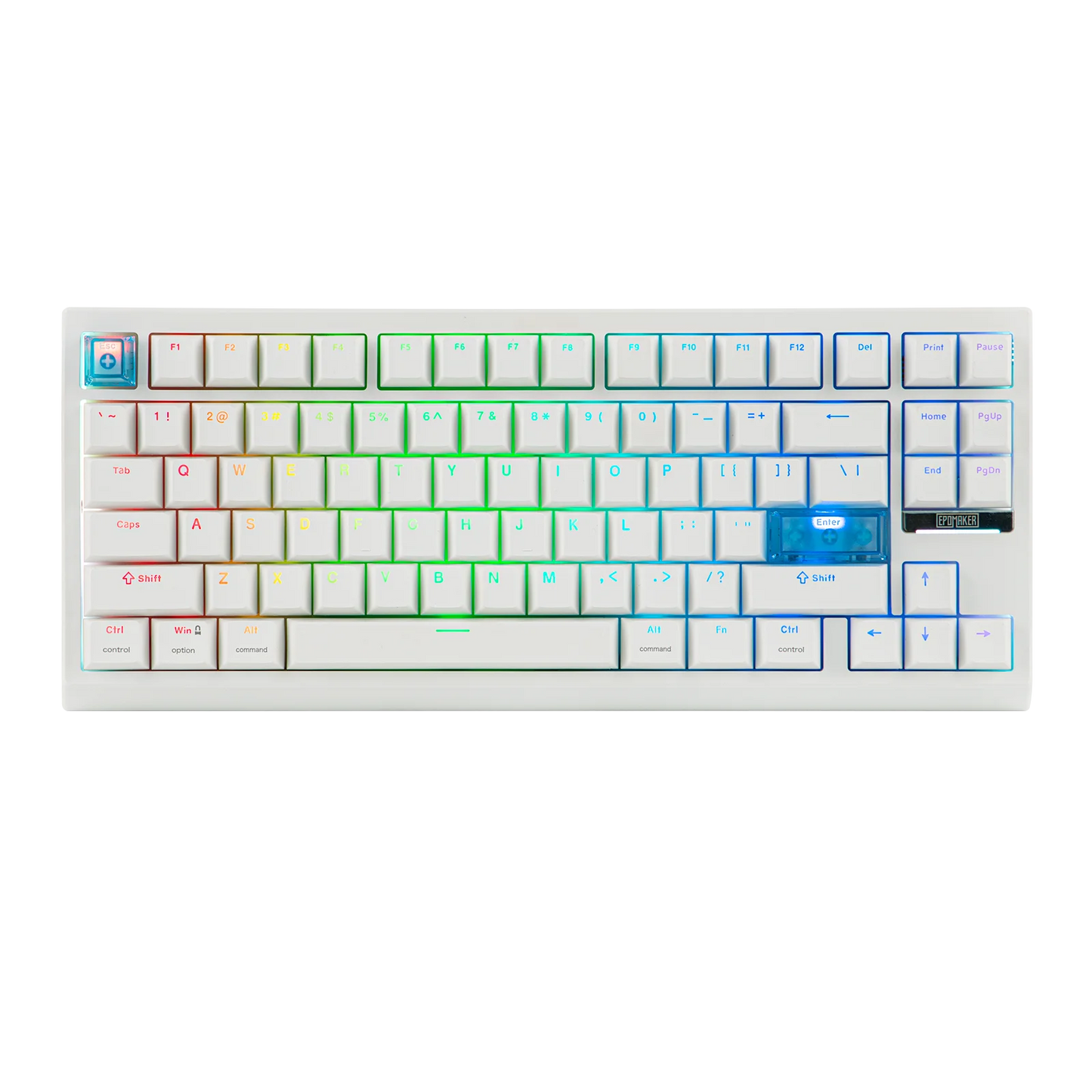

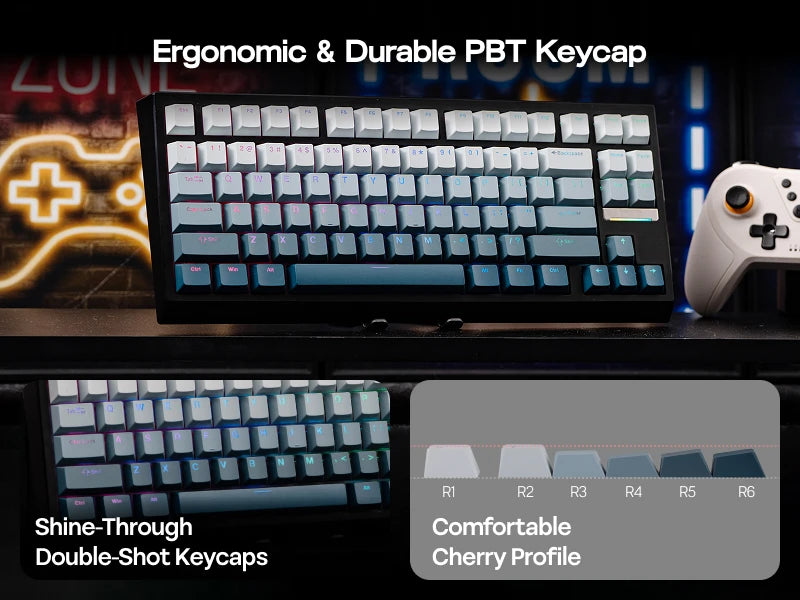

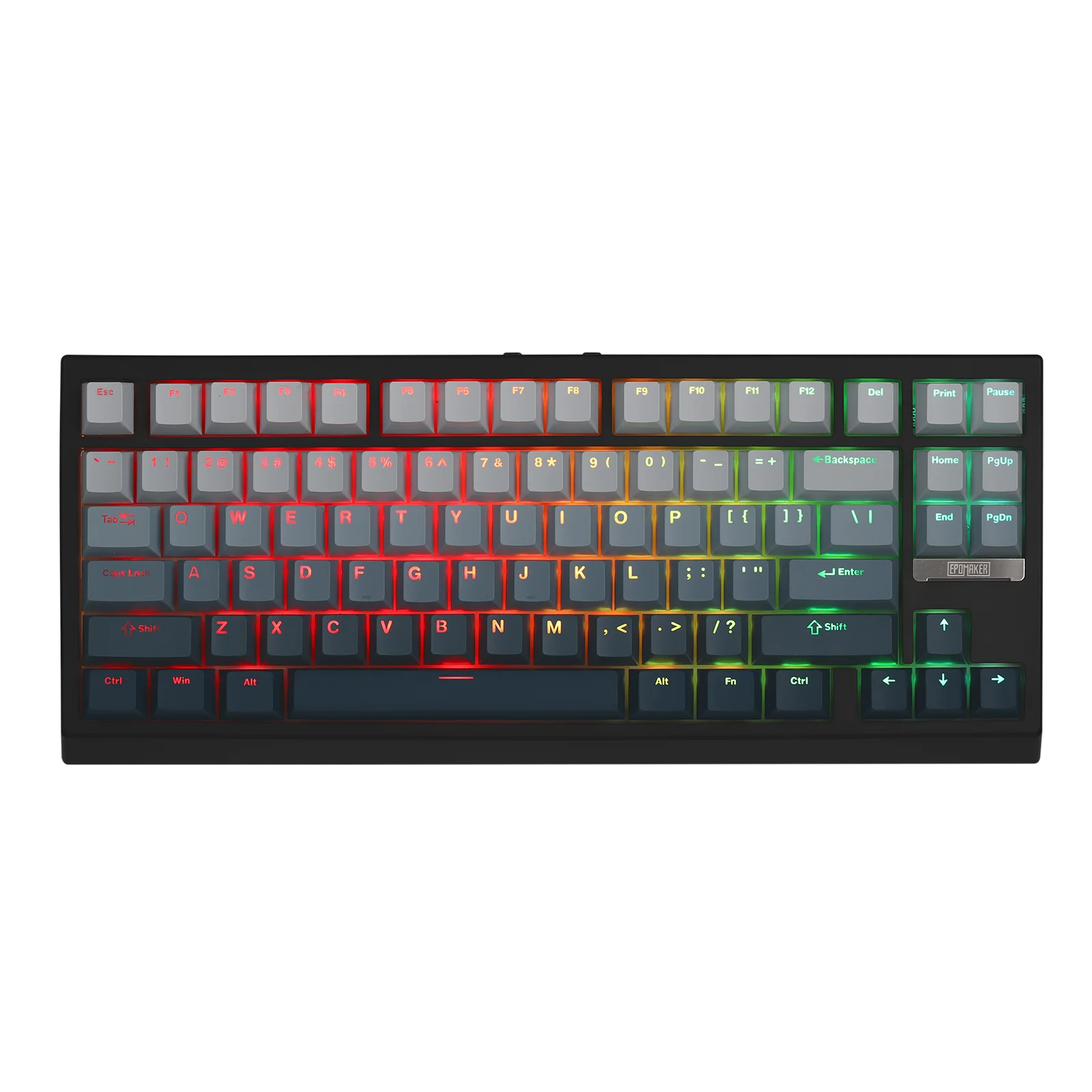

Shine-through RGB backlighting

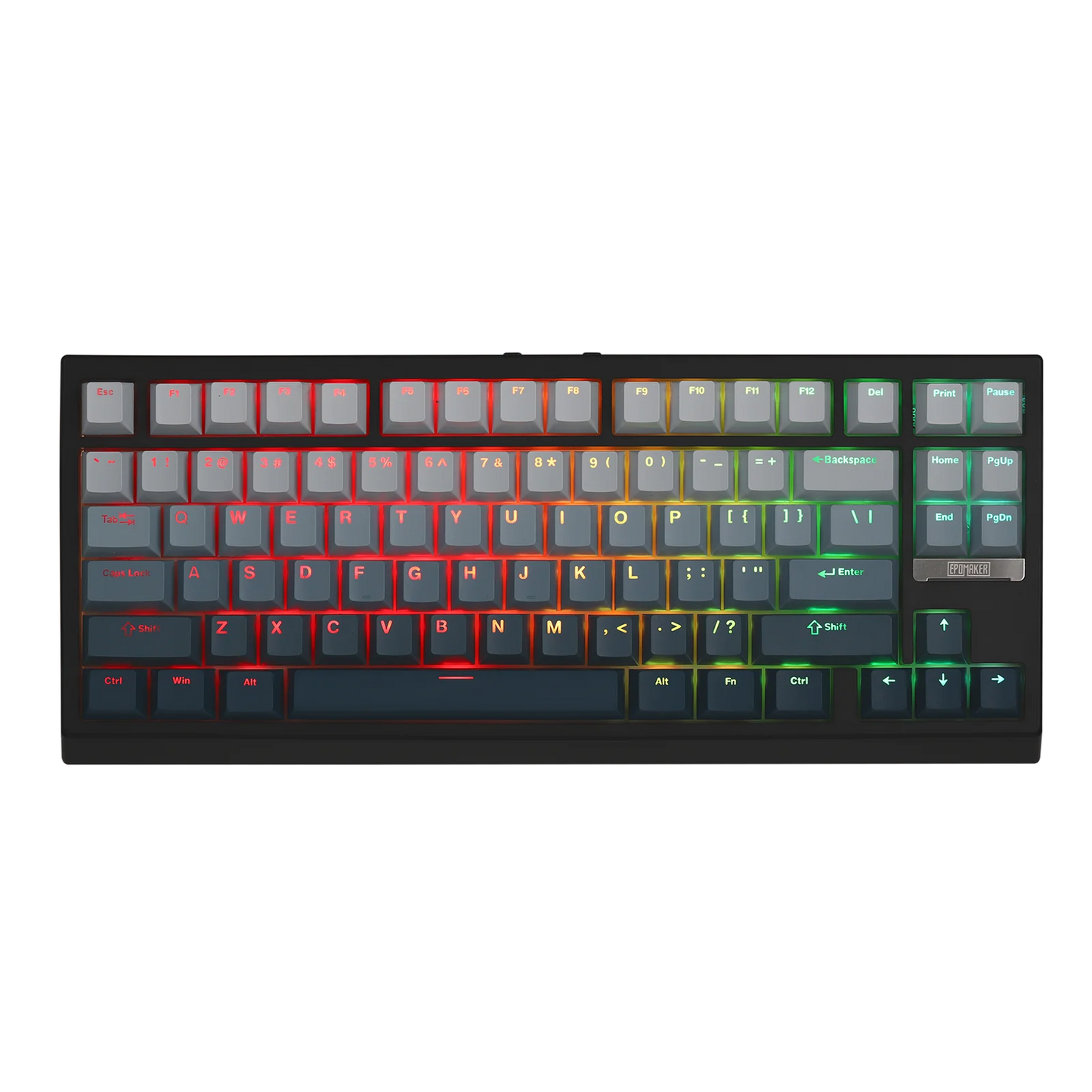

Bathe in the dynamic RGB backlighting of the G84 HE, which responds instantly to all your gaming actions, while your fingers glide effortlessly over durable PBT keycaps with shine-through legends that stay crisp and clear for years. Using double-shot technology, these grease-resistant keycaps feature front-printed transparent legends that remain bright and clear without a lamp or other light source. No more fumbling with your keyboard in the dark: every key remains clear and easy to read in premium condition. Unlock a world of customization and visual flair with the true backlit G84 keyboard, designed to elevate both productivity and gameplay style.

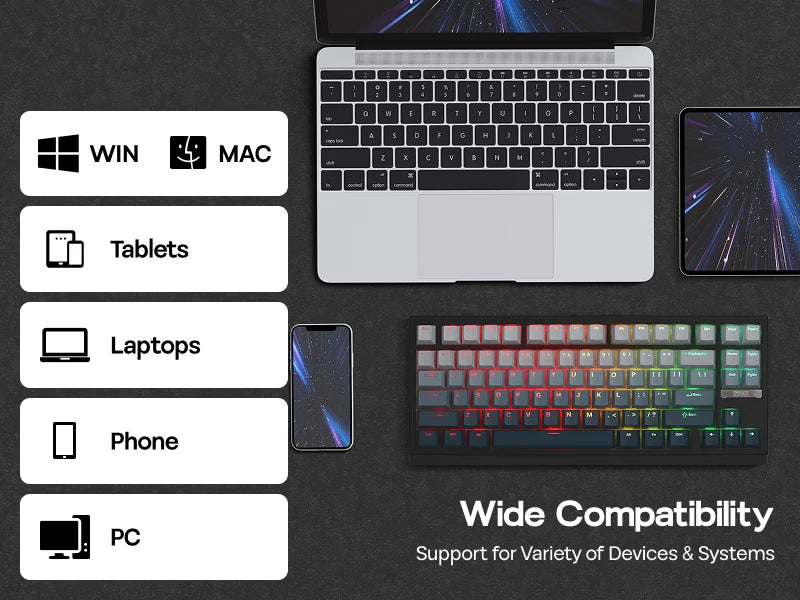

Tri-mode wireless for Mac/WIN

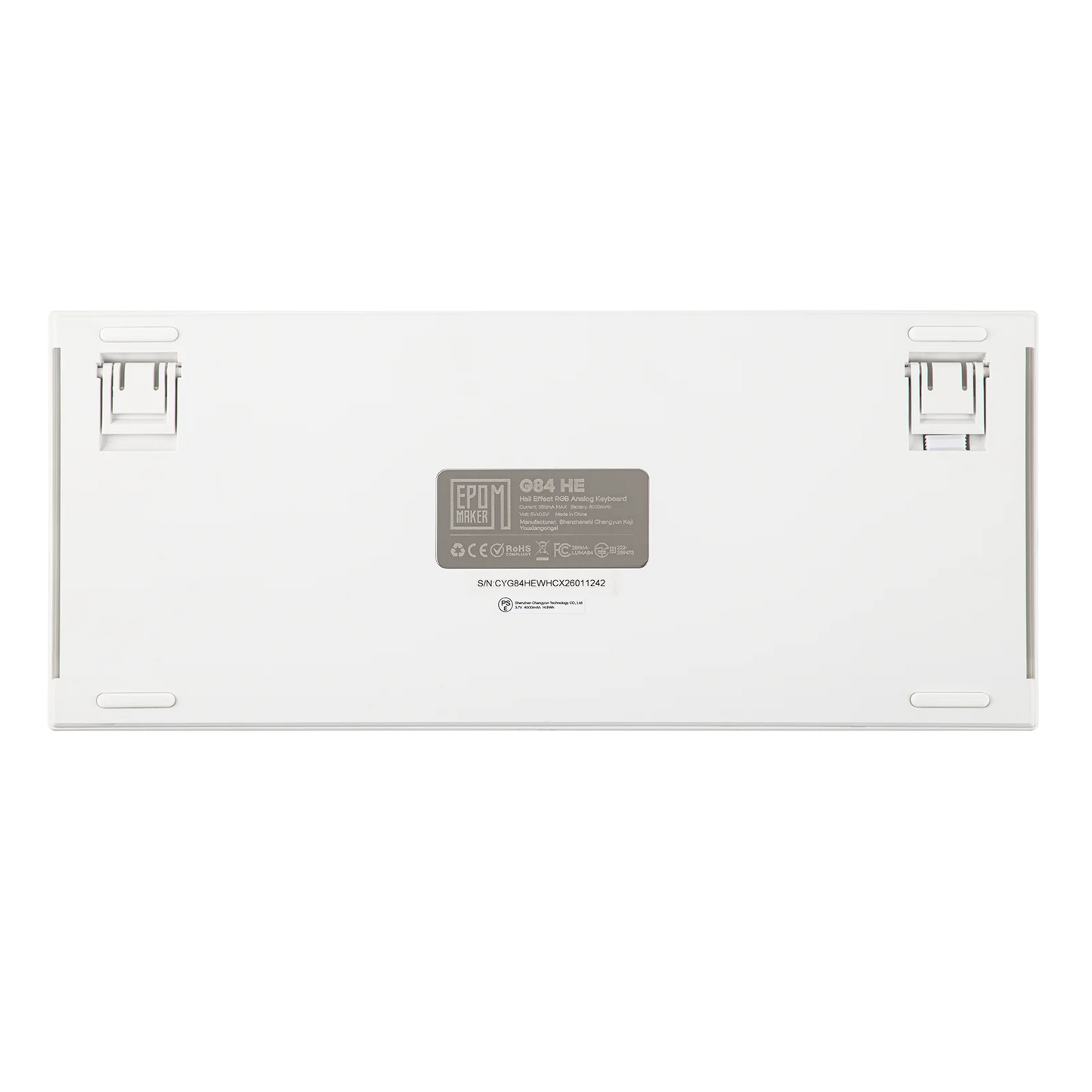

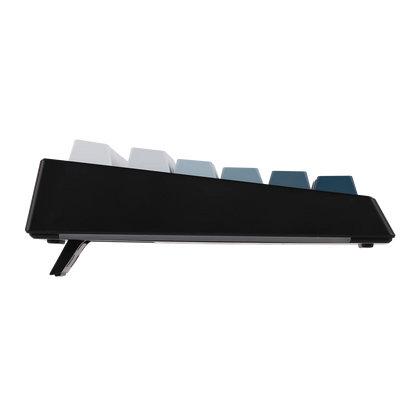

Experience ultimate flexibility with our G84 HE wireless gaming keyboard, featuring 3 connection modes and a unique 80% layout. Modern, sleek, and designed for versatile compatibility, the G84 HE has been carefully engineered with an intuitive tri-mode control on the top and a built-in hidden storage compartment for the 2.4 GHz receiver under its kickstand, which is 2-stage adjustable to provide a comfortable typing angle in various scenarios. Whether you use a PC, Android tablet, Mac laptop, or phone, enjoy the stable connection offered by the G84, free from cable clutter.

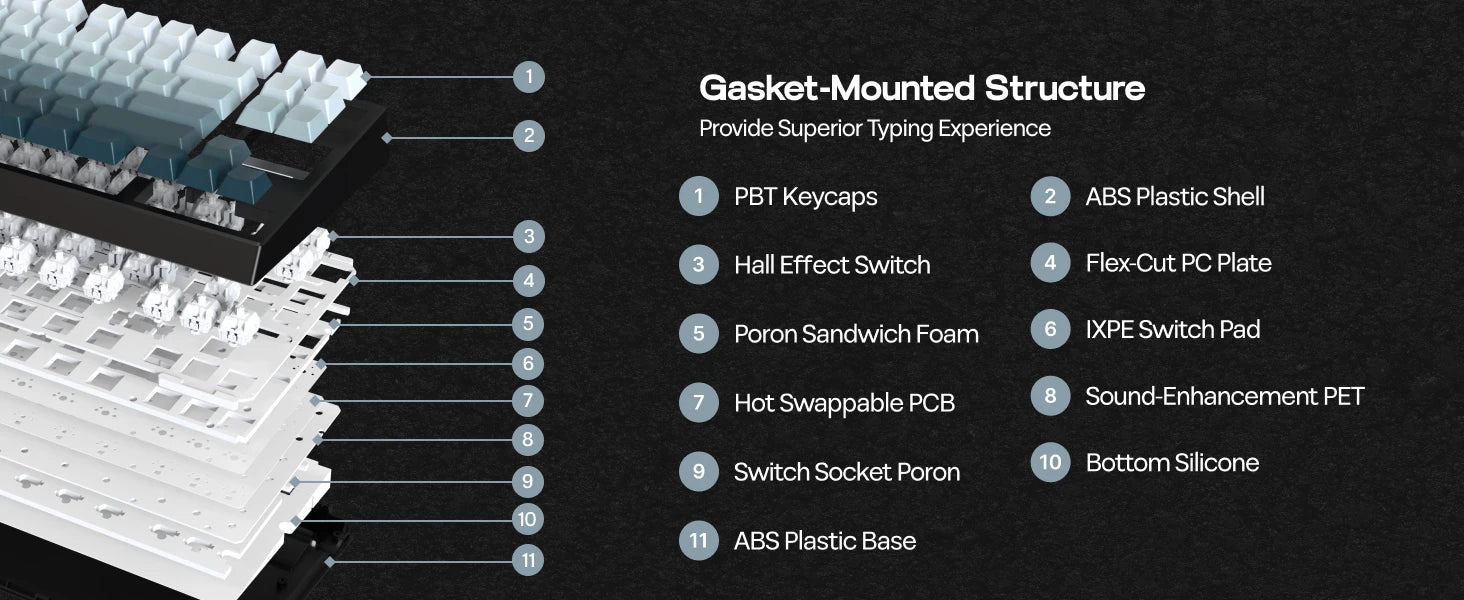

Creamy gasket keyboard with sound dampening

Take delight in the rich, creamy sound delivered by our G84 HE gasket-mount keyboard, with a significantly enhanced acoustic and typing experience compared with a traditional tray-mount keyboard. The unique gasket-mount structure adds cushioning layers for a soft landing every time a key is pressed, creating a mellow, switch-focused typing sound that is quieter than non-padded designs. With 5 layers of Poron, IXPE, silicone, and sound enhancement padding as additional dampening materials, the acoustics are further refined for a creamy, buttery-smooth sound profile, delivering the immersive tone you need for gaming and productive work.

Specifications:

Brand: EPOMAKER
Model: G84 HE
Layout: 75% Layout, QWERTY ANSI US Layout
Number of Keys: 84 Keys
Battery: 8000mAh (2*4000mAh)

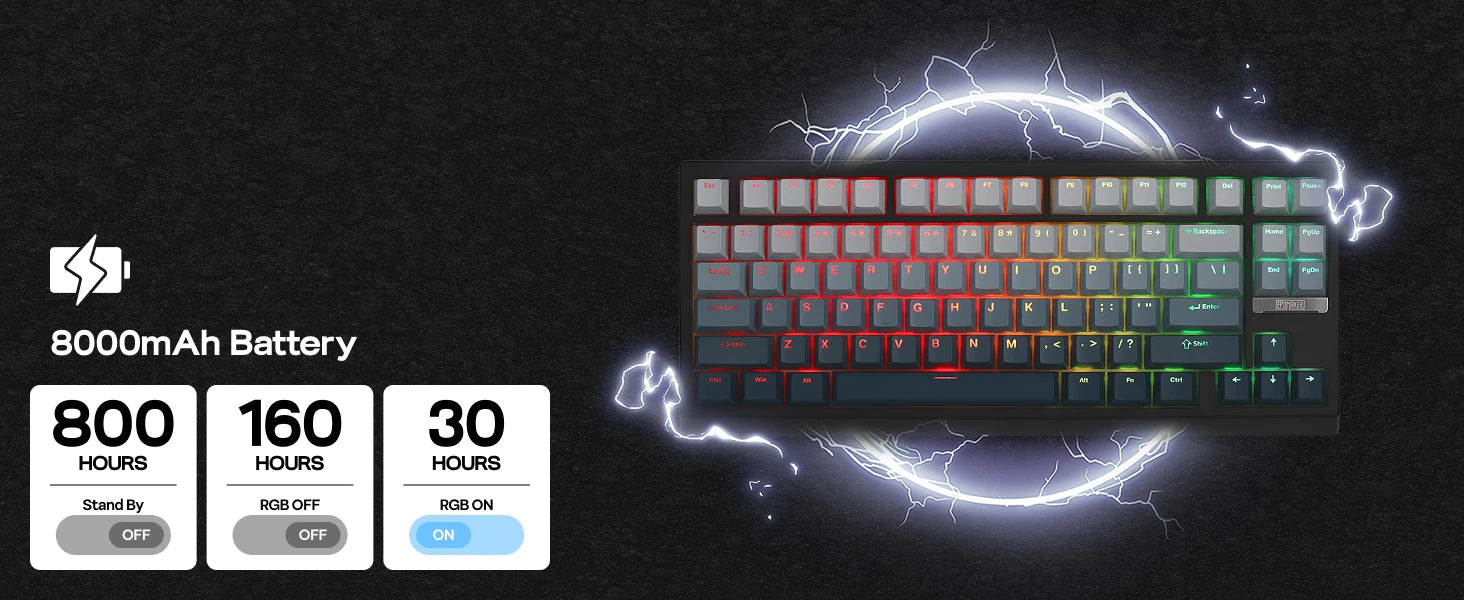

Battery Life: 30 Hours of Continued Use with Backlight On, and 160 Hours of Continued Use with Backlight Off. It lasts 800 hours in stand-by mode.
Connectivity: 2.4Ghz Wireless/Bluetooth/USB A-C
Compatibility: Mac/WIN/Android. (Physical Switch for Mac/WIN swap)

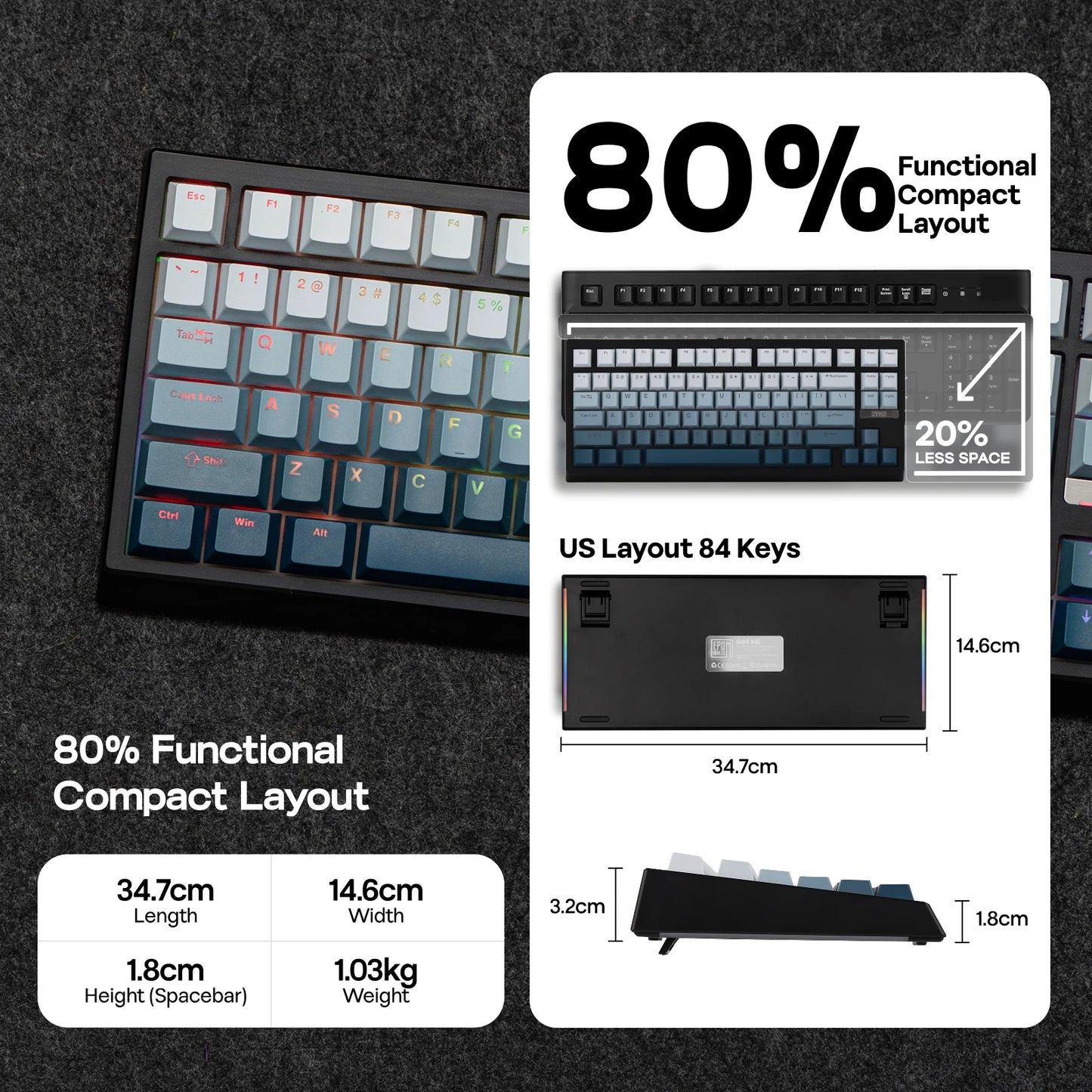

Keyboard Dimensions: 34.7cm in Length, 14.6cm in Width, and 4.2cm in Height
Keyboard Weight: 1kg
Front Height: 1.85cm

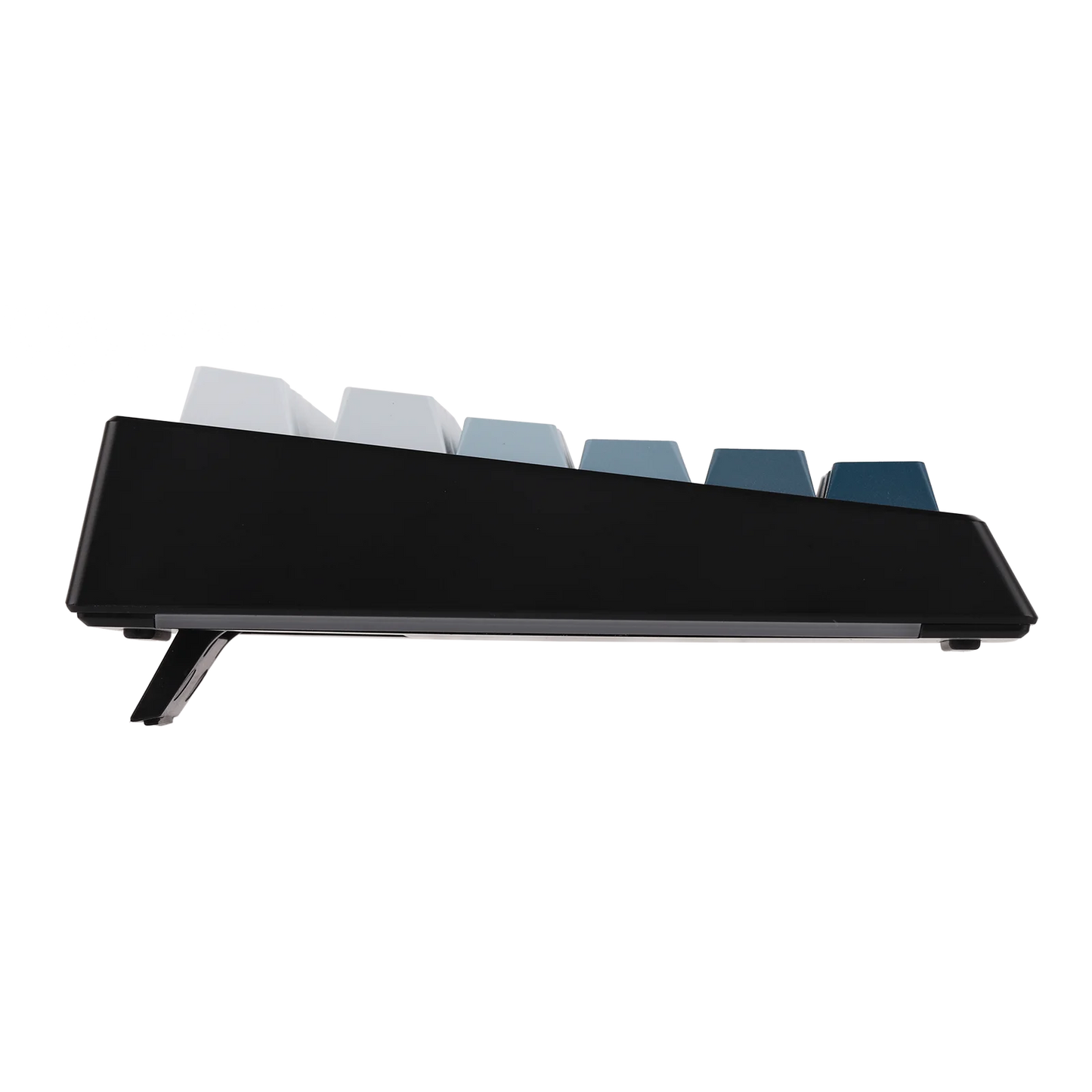

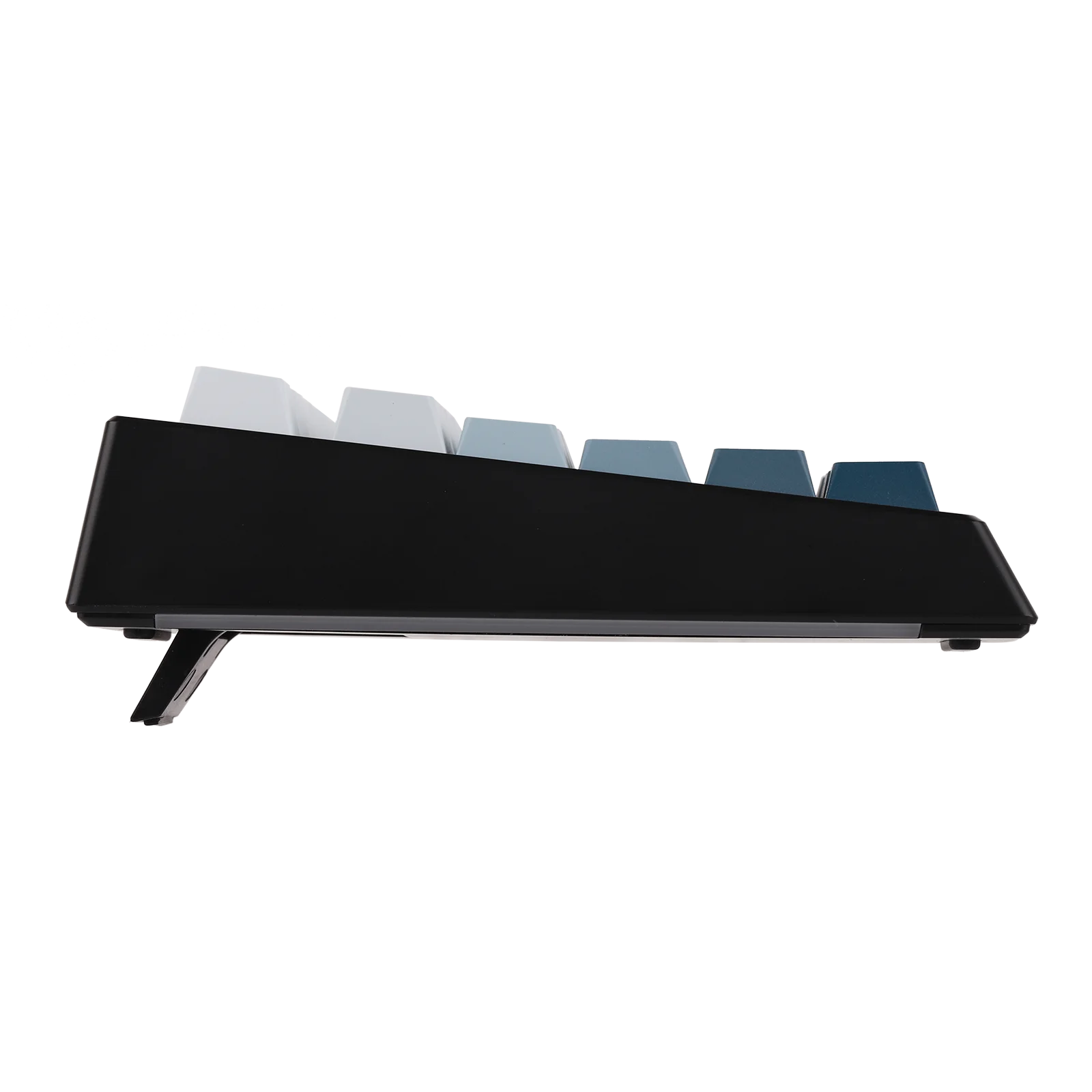

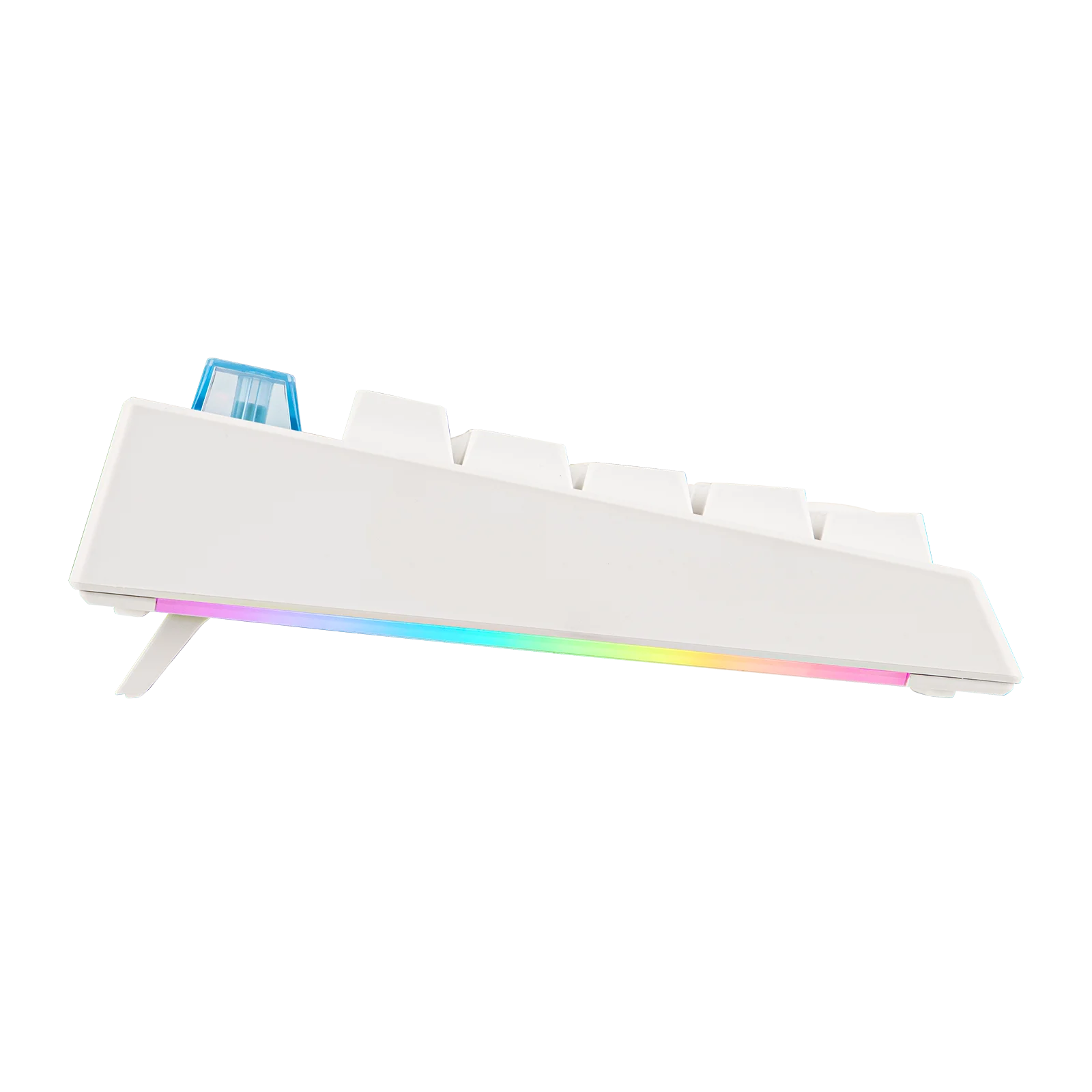

Typing Angle: 6 degrees, 8 degrees and 10.5 degrees
Case Material: ABS Plastic
Plate Material: PC Plate
Flex-Cut: Flex-Cut
Stabilizers: Plate-Mounted Stabilizer
Mounting Structure: Gasket-Mount

Sound Dampening: PORON Sandwich Foam, IXPE Switch Pad, Sound Enhancement Pad, PORON Switch Socket Pad, and Bottom Silicone

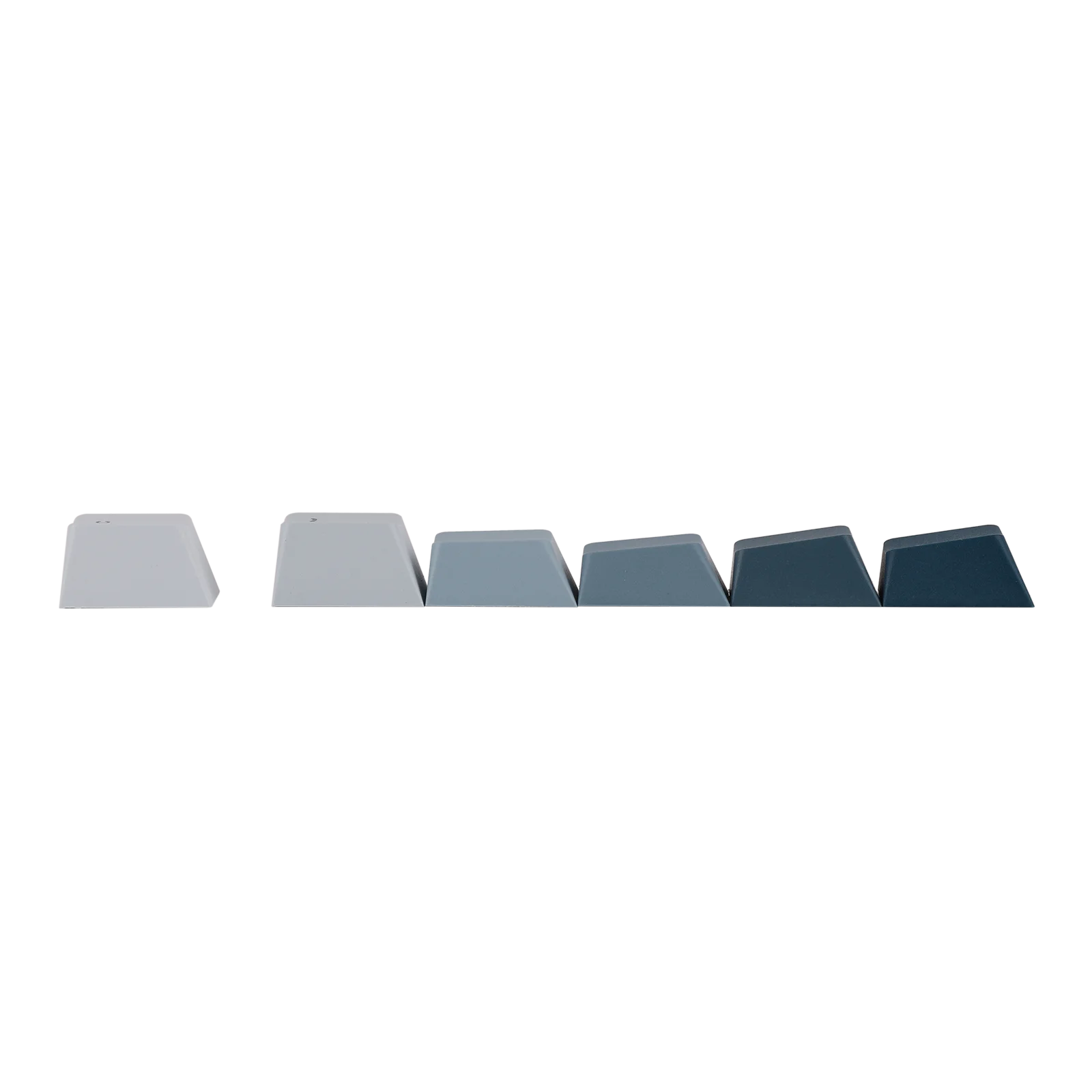

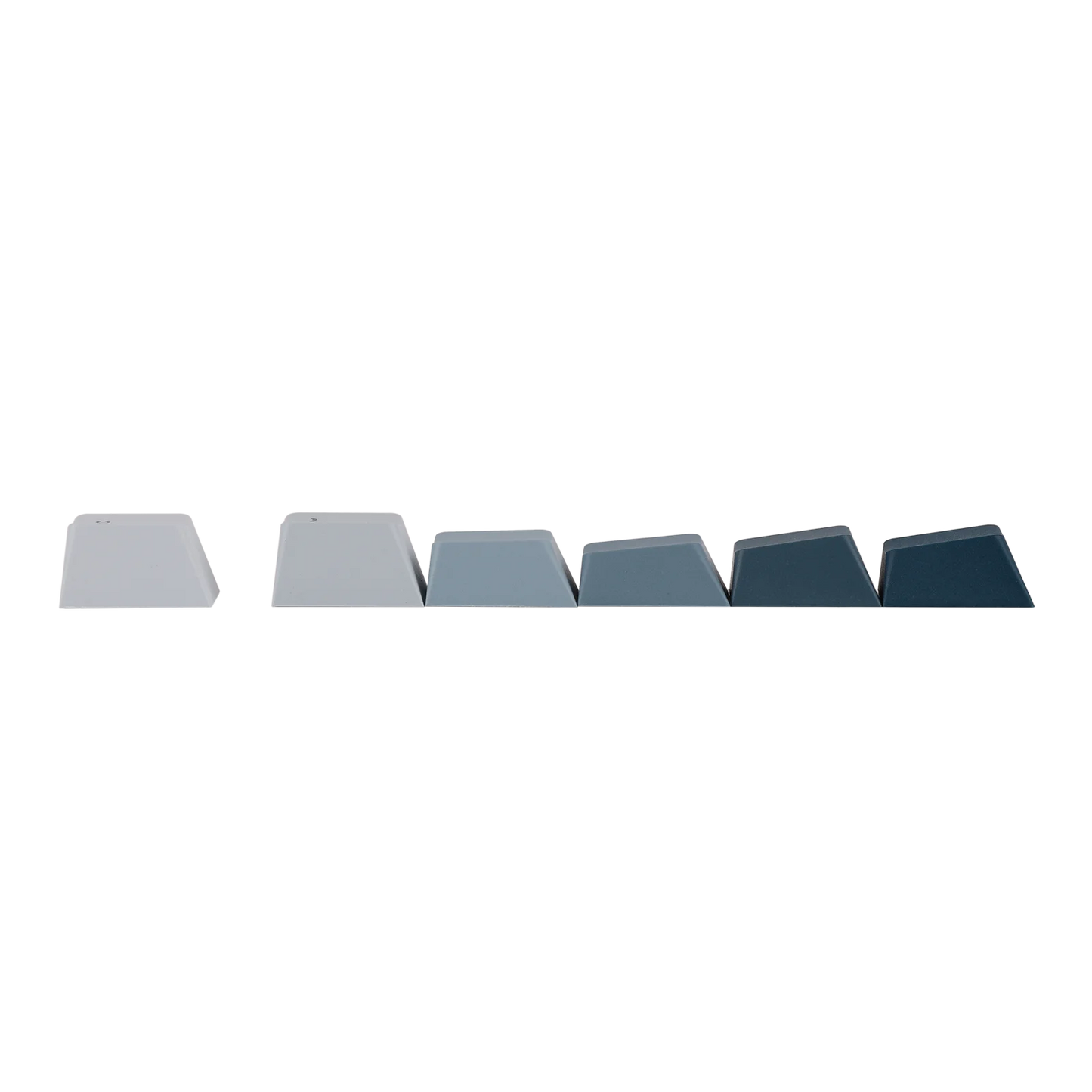

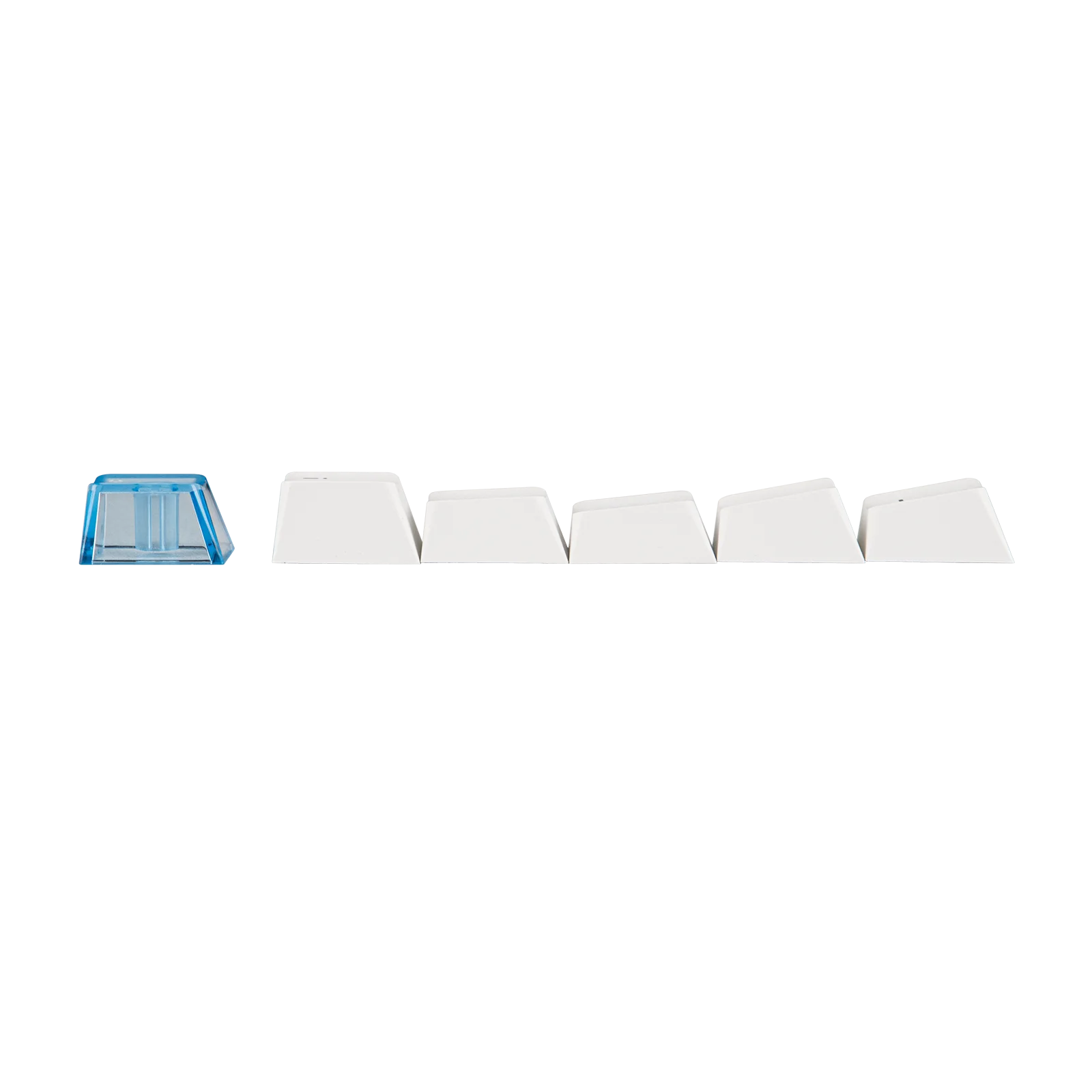

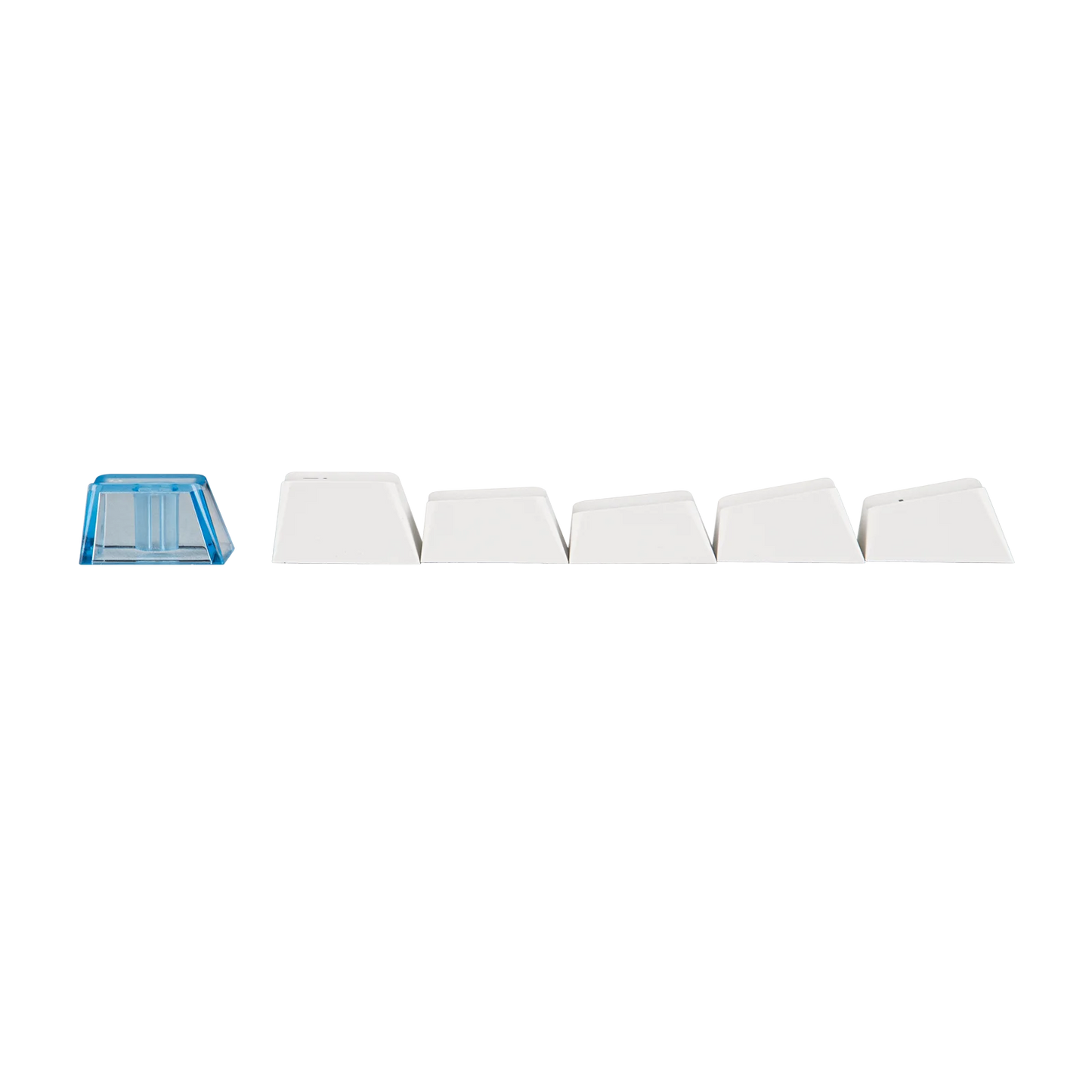

Keycaps Profile: Cherry Profile
Keycaps Material: PBT Plastic
Keycaps Manufacturing Technique: Double-Shot
Switch: North-Facing Magnetic Switch

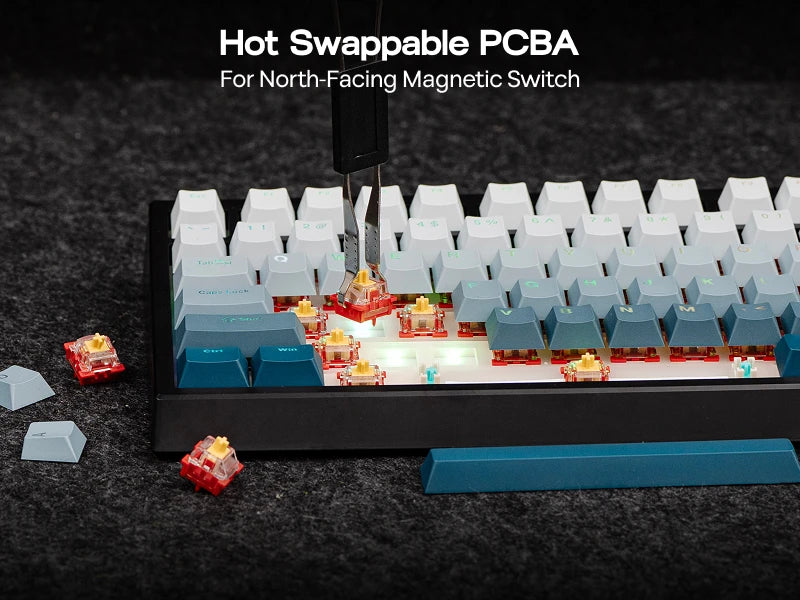

Hot swappable: Yes, with North-Facing Magnetic Switches
RGB: Yes, with per-key north-facing RGB LEDs
Polling Rate: 8,000hz in 2.4G and Cable Mode, and 125hz in Bluetooth Mode.

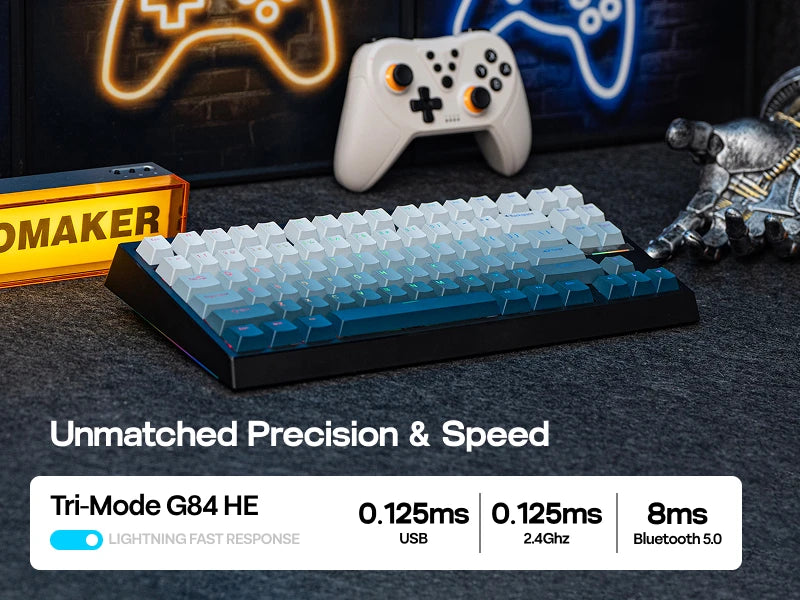

Latency: 0.125ms in Wired and 2.4Ghz Wireless Mode, and 8ms in Bluetooth Mode.
Anti-Ghosting: Yes, G84 HE Magnetic Keyboard support NKRO and software calibration for anti-ghosting typing.

Programming Software: Yes, G84 HE Hall Effect Keyboard supports EPOMAKER software for customization on WIN and Mac devices.
Hall Effect Dead Zone: Zero Dead Zone
Hall Effect Snap Key (SOCD): Yes

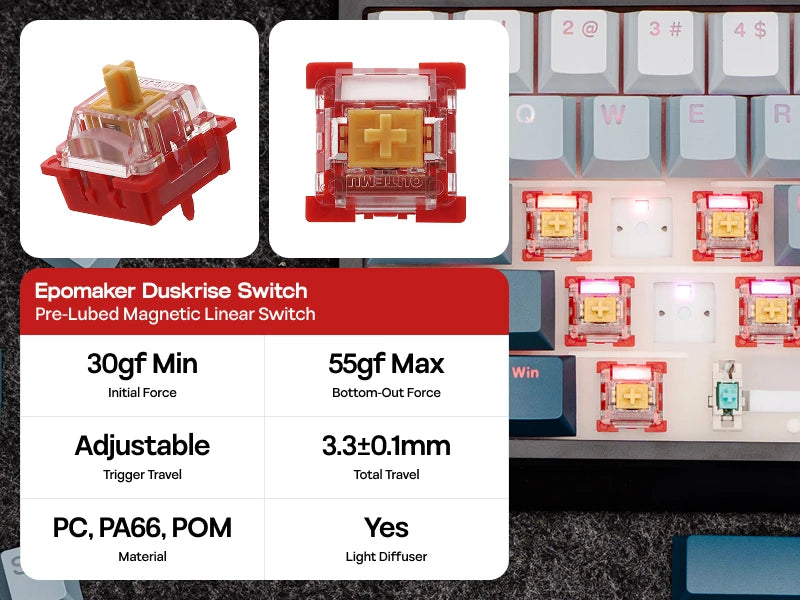

Specifications for Epomaker Duskrise Magnetic Switch:

Switch Type: Hall Effect Magnetic Switch
Initial Force: 30gf Min
Bottom-out Force: 55gf Max
Initial Magnetic Flux (if PCB=1.6mm): 95±15GS
Bottom Magnetic Flux (if PCB=1.6mm): 580±50GS
Trigger Travel: Adjustable per 0.01mm, from 0.1mm to 3.3mm
Total Travel: 3.3±0.1mm
Top Case: PC, Transparent
Bottom Case: PA66, Red
Stem/Kone: POM, Yellow
Light Diffuser/Light Pipe: Yes, with transparent acrylic light diffuser

Specifications for EPOMAKER Creamy Jade Mag Switch:

Switch Type: Hall Effect Magnetic Switch

Initial Force: 30gf Min

Bottom-out Force: 55gf Max

Initial Magnetic Flux (if PCB=1.6mm): 95±15GS

Bottom Magnetic Flux (if PCB=1.6mm): 580±50GS

Trigger Travel: Adjustable per 0.005mm, from 0.1mm to 3.3mm

Total Travel: 3.3±0.1mm

Top Case: PC, Transparent

Bottom Case: PA66

Stem/Kone: POM

Light Diffuser/Light Pipe: Yes, with transparent acrylic light diffuser

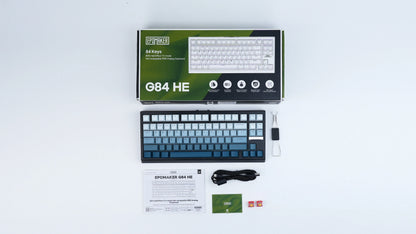

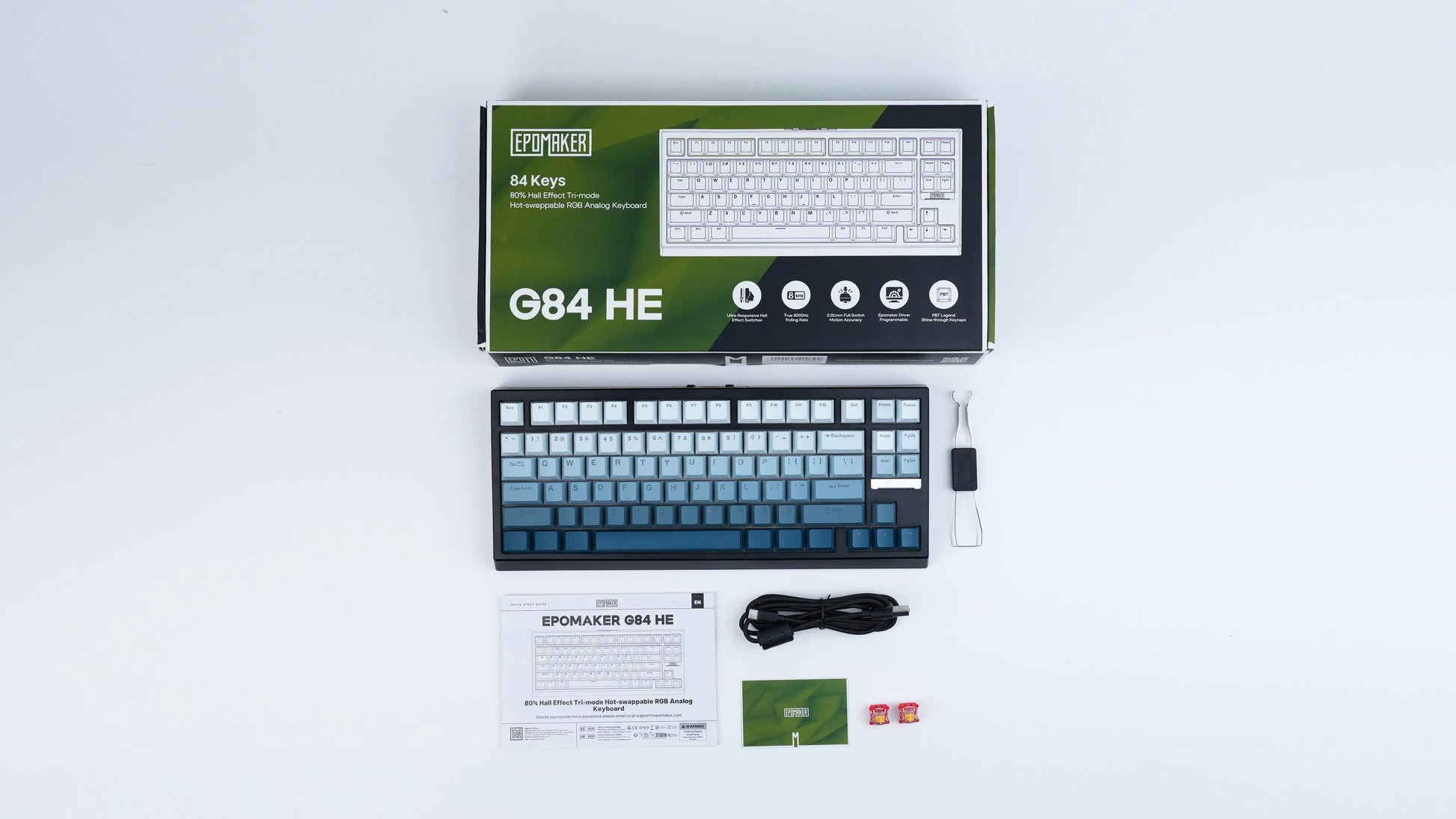

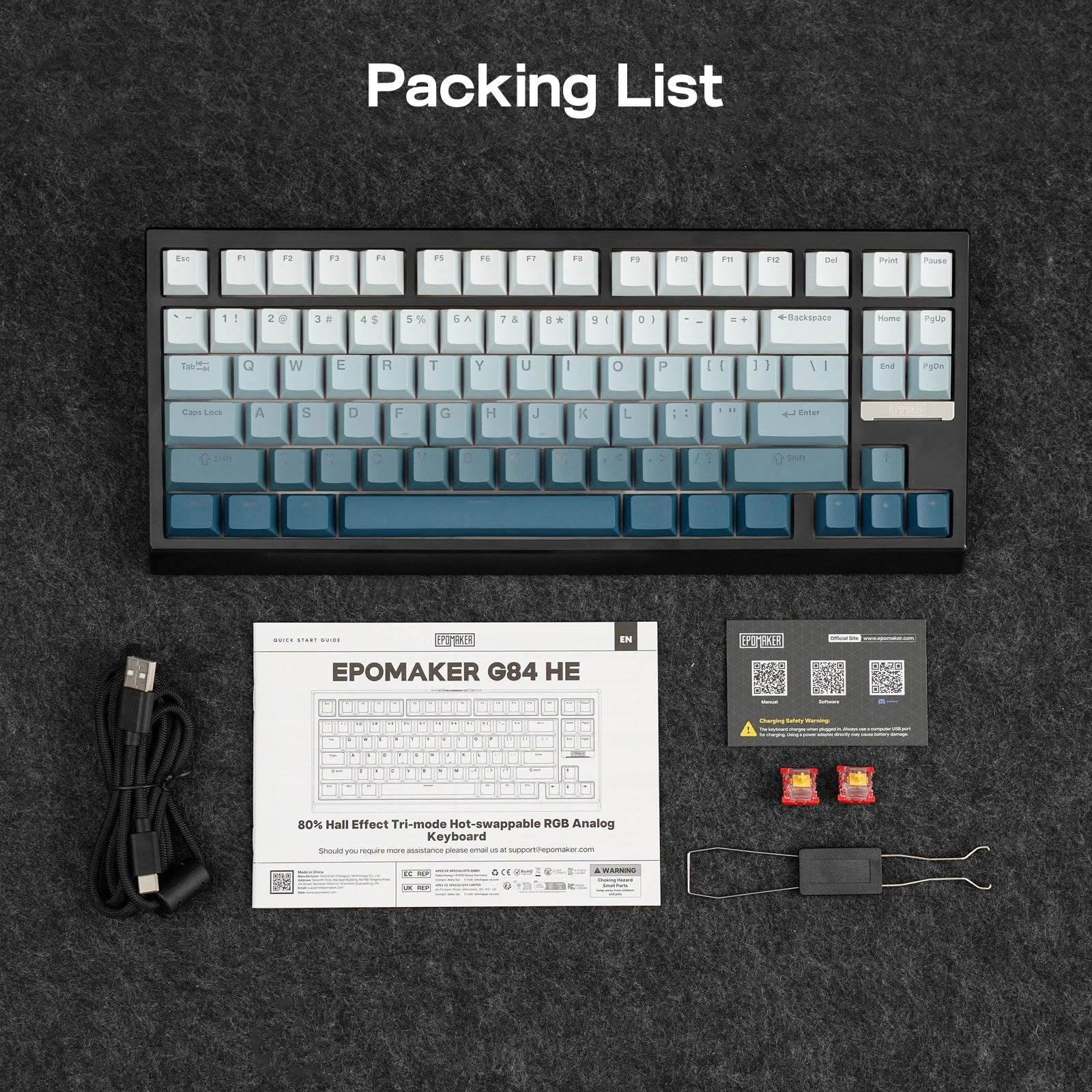

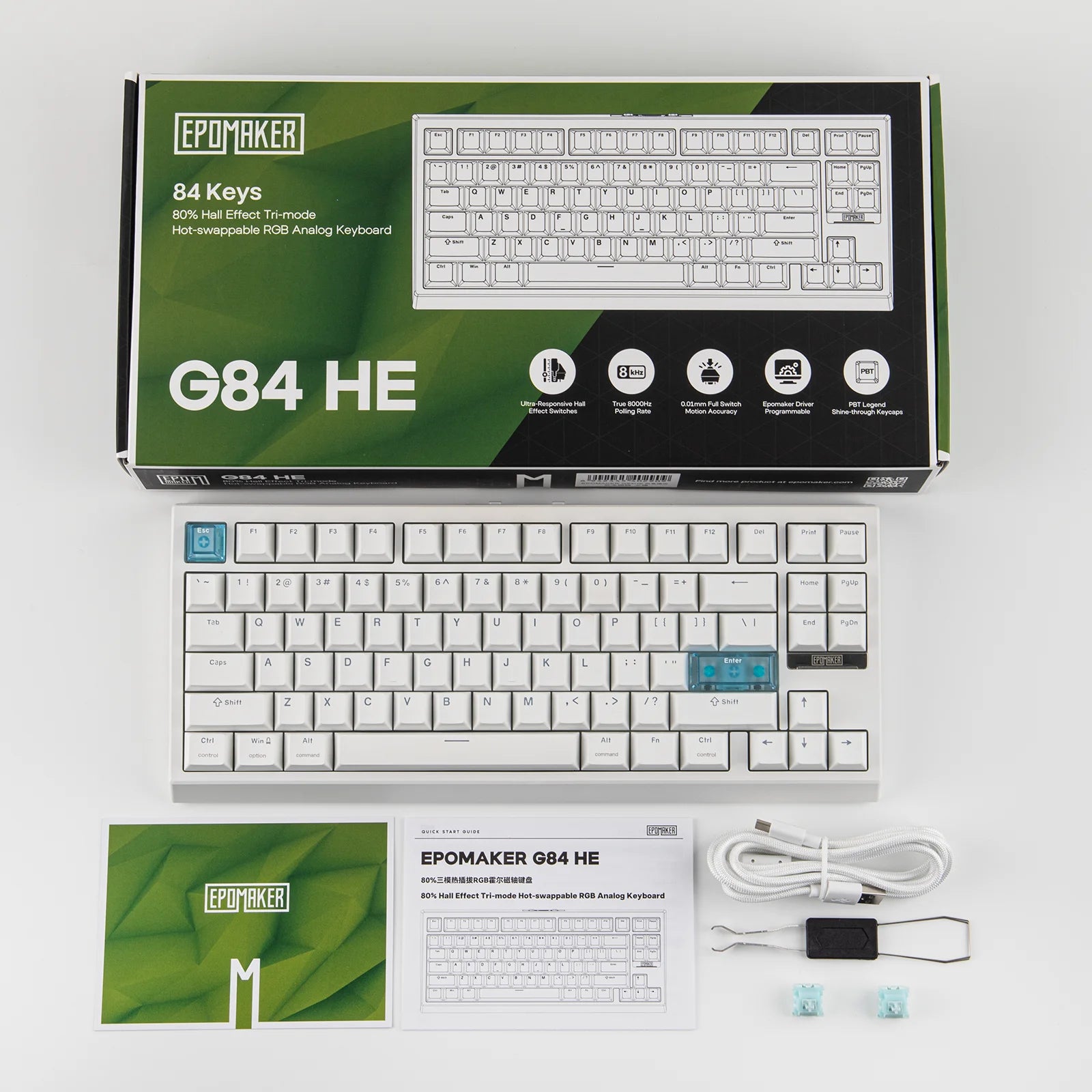

Package Content:

1* G84 HE 75% Mechanical Keyboard
1* Multilingual Manual
1* Detachable USB A-to-C Cable & 1* 2.4Ghz Wireless Dongle
1* Switch Puller
2* Extra Switches
